POLYMAT Portable Toilet Blocks

TOILET BLOCK SINGLE PAN INDIAN STYLE

  • Material : Virgin Plastic Materials
  • Corrosion resistance free materials
  • Available Knock- down condition with Solar lighting
  • quick and easy installation
  • Connect outlet with Septic Tank Or Other attachment
  • Size : Length-1100 mm Width-905 mm Hight  2170 mm

TOILET BLOCK EUROPEAN STYLE

  • European Style with Porcelain fitted condition
  • With Flush system and water tape
  • Available knock-down condition with Solar lighting
  • Maintenance free, attractive & durable
  • Connect outlet with Septic Tank Or other attachment

BATHROOM STYLE BLOCK

  • Bathroom Block with connected with Water Tap.
  • Available in knock-down condition with Solar lighting
  • Maintenance free, attractive, durable, Space saving.
  • Connect outlet direct to Drain or other attachment
bath

URINAL STYLE BLOCK

  • Urinal style block is fitted Porcelain Urinal Pan
  • Available in knock- down condition with Solar lighting
  • Maintenance free , attractive, durable, Space saving.
  • Connect outlet direct to Drain or other attachment.

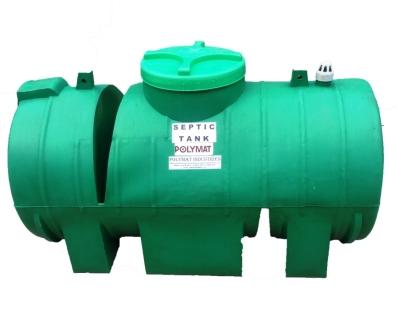

SEPTIC TANK

  • Made of 100% Virgin heavy duty Plastic.
  • 4” Pipe in let & out let with single partition.
  • Easy to handle & direct installation.
  • Long life.
septictank

SOAK PIT

  • Made of 100% Virgin heavy duty Plastic.
  • Easy to handle & installation outlet connect with septic tank & Long life.
  • Size : Standard in size

INSTALLATION SYSTEM OF SOAK PIT

  • Dig the land near the toilet out let area about 1.25 x 1.25 meter for single soak pit  Tank.

  • To increase capacity dig more and may put extra Tank to connect as needed.

  • Put soak pit tank in centre .

  • Filled with brick /stone aggregated 1- 2” appx , light stione, thick sand etc inside and outside of the Soak Pit tank area.

  • Connect 110 mm pipe either from direct toilet or Septic Tank.

  • Cover with supplied LID whatever with sand or mortar.

INSTALLATION GUIDELINE

1.Select space with filled dry Sand Or Soft Soil to cover inside bottom Box of the Down Toilet  Body After Sealant  to fixed P-Trap at site from out let of Indian Pan Toilet .

2.Cover Bottom with 5-6” Of Bricks with Mortar to protect movement of the Toilet Body.

3.For  Discharge – to Fix 110 mm PVC pipe fitting connection with Out let of P- Trap direct connect to soak or Septic Tank Or Bio Tank Or Other  Brick  Tank as usual.

4.Septic Tank Or Soak Pit or Bio Tank can be Installed underground or Place on Floor subject  to slop condition of out going of discharge.

5.For Bio Tank Bacteria Imoculum to be filled properly by the technician after complete fitting.

6.Next day it may be used as usual.
